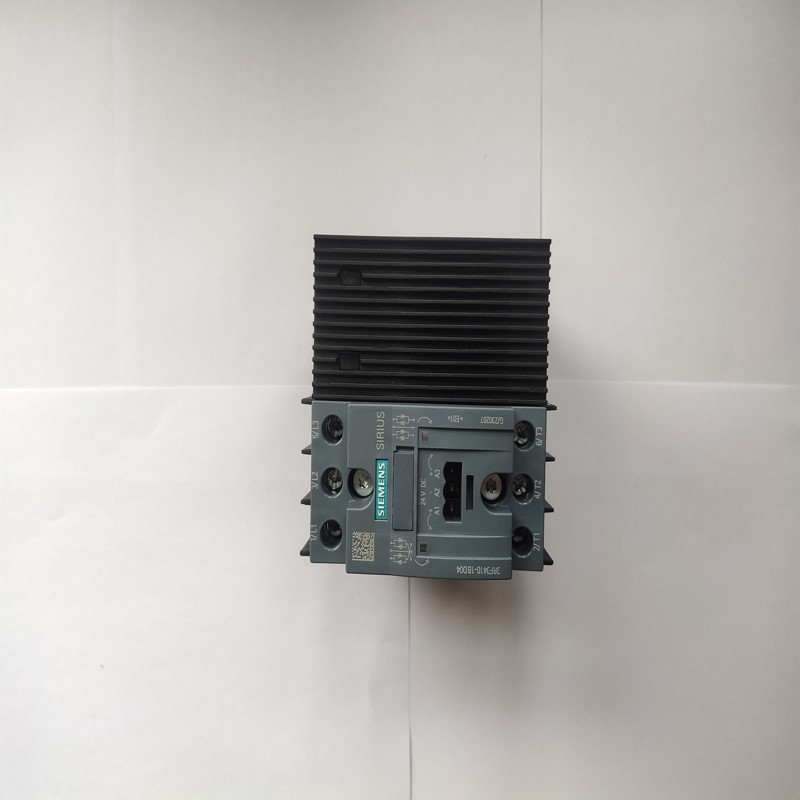

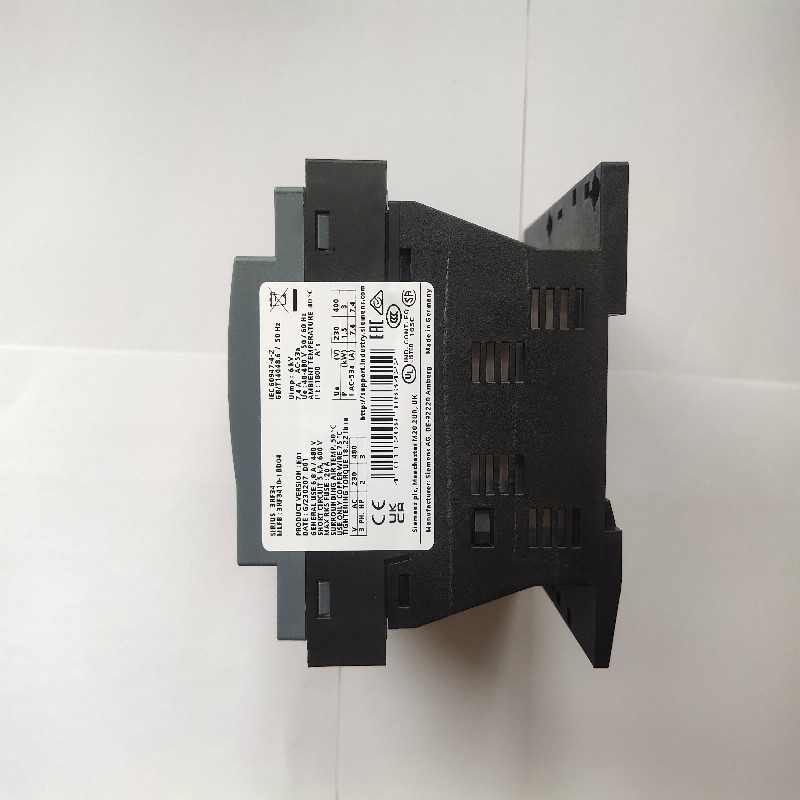

3RF3410-1BD04
Item No :
3RF3410-1BD04 SOLID-STATE CONTACTOR 3-PH 3RF3Order(MOQ) :
1Payment :
T/TProduct Origin :
GermanyColor :
GreyShipping Port :
XiamenLead Time :
5daysWeight :
100g 95*90*113.8MM(Height*Width*Depth)3RF3410-1BD04
Contact us
Whatsapp/Mobile：+86 18659279237
E-mail: conradautomation@gmail.com
Address: Unit314-1,No.16 East Haijing Road, Xiamen Area of Pilot Free Trade Zone (Fujian) of China
Website: https://www.conradautomation.com
Logistic informaiton
|
Manufacturer |
Siemens |
|
Brand |
Siemens |
|
Series |
SIRIUS |
|
Part Number |
3RF3410-1BD04 |
|
Product Type |
SOLID-STATE CONTACTOR |
|
Size |
95*90*113.8mm |
|
Quality |
100% New Original |
|
Stock |
In stock |
|
Delivery time |
1-3 days after Payment |
|
After-sales Service |
Have |
|
Warranty |
1 year |
|
Shipping term |
DHL / FEDEX/ EMS /UPS/TNT/EMS |
Our Service
1.New and Original
2.In Stock
3.Best Price
4.Fast Delivery
5.One Year Warranty
New + original + in stock + one year warranty
Technical informaiton
| product brand name | SIRIUS | |
| product designation | solid-state reversing contactor | |
| design of the product | two-phase controlled | |
| product type designation | 3RF34 | |
| manufacturer's article number | ||
| ● _1 of the accessories that can be ordered | 3RA2921-1BA00 | |
| ● _2 of the accessories that can be ordered | 3RF3900-0QA88 | |
| product designation | ||
| ● _1 of the accessories that can be ordered | Link module | |
| ● _2 of the accessories that can be ordered | Connection adapter | |
| General technical data | ||
| product function | instantaneous switching | |
| power loss [W] for rated value of the current | ||
| ● at AC in hot operating state | 13 W | |
| ● at AC in hot operating state per pole | 4.33 W | |
| ● without load current share typical | 0.4 W | |
| insulation voltage rated value | 600 V | |
| type of voltage of the control supply voltage | DC | |
| surge voltage resistance of main circuit rated value | 6 kV | |
| shock resistance according to IEC 60068-2-27 | 15g / 11 ms | |
| vibration resistance according to IEC 60068-2-6 | 2g | |
| certificate of suitability | CE / UL / CSA / CCC / C-Tick (RCM) | |
| reference code according to IEC 81346-2 | Q | |
| Substance Prohibitance (Date) | 05/28/2009 | |
| Main circuit | ||
| number of poles for main current circuit | 3 | |
| number of NO contacts for main contacts | 2 | |
| number of NC contacts for main contacts | 0 | |
| operating voltage at AC | ||
| ● at 50 Hz rated value | 48 ... 480 V | |
| ● at 60 Hz rated value | 48 ... 480 V | |
| operating frequency rated value | 50 ... 60 Hz | |
| relative symmetrical tolerance of the operating frequency | 10 % | |
| operating range relative to the operating voltage at AC | ||
| ● at 50 Hz | 40 ... 506 V | |
| ● at 60 Hz | 40 ... 506 V | |
| operational current | ||
| ● at AC-3 at 400 V rated value | 7.4 A | |
| ● at AC-53a at 400 V at ambient temperature 40 °C rated value | 7.4 A | |
| operational current minimum | 500 mA | |
| operating power | ||
| ● at AC-3 at 400 V rated value | 3 kW | |
| rate of voltage rise at the thyristor for main contacts maximum permissible | 1 000 V/µs | |
| blocking voltage at the thyristor for main contacts maximum permissible | 1 200 V | |
| reverse current of the thyristor | 10 mA | |
| derating temperature | 40 °C | |
| surge current resistance rated value | 600 A | |
| I2t value maximum | 1 800 A²·s | |
| Control circuit/ Control | ||
| type of voltage of the control supply voltage | DC | |
| control supply voltage 1 | ||
| ● at DC rated value | 24 V | |
| control supply voltage | ||
| ● at DC initial value for signal <1> detection | 15 V | |
| ● at DC full-scale value for signal<0> recognition | 5 V | |
| symmetrical line frequency tolerance | 5 Hz | |
| operating range factor control supply voltage rated value at DC | ||
| ● initial value | 0.63 | |
| ● full-scale value | 1.25 | |
| control current at minimum control supply voltage | ||
| ● at DC | 2 mA | |
| control current at DC rated value | 15 mA | |
| ON-delay time | 5 ms | |
| OFF-delay time | 5 ms; additionally max. one half-wave | |
| switchover delay of reversing contactor | 60 ... 100 ms | |
