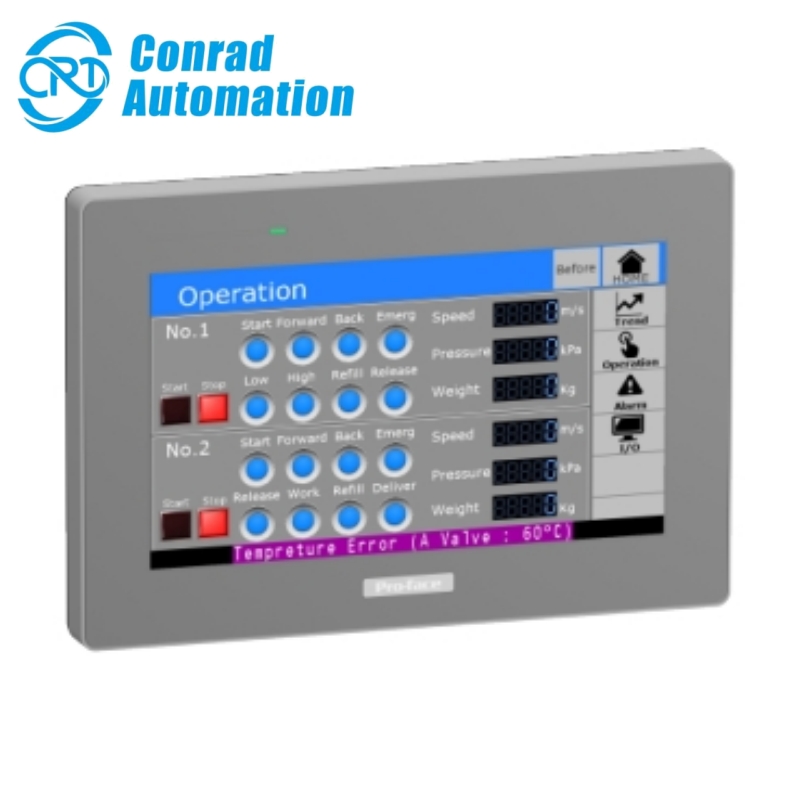

New Original Pro-Face PFXSTM6400WADE01 7.0'' wide touch panel display HMI STM6000 Series Human Machine Interface

PFXSTM6400WADE01

New Original Pro-Face PFXSTM6400WADE01 7.0'' wide touch panel display HMI STM6000 Series Human Machine Interface

Pro-Face PFXSTM6400WADE01

Basic touch panel modular terminal, Proface STM6000, GP-ProEX, 7"W display, 1 COM, 2 Ethernet, 24V DC

  • Item No :

    PFXSTM6400WADE01

  • Order(MOQ) :

    1

  • Payment :

    T/T

  • Product Origin :

    China

  • Color :

    Black

  • Shipping Port :

    XIAMEN

  • Lead Time :

    30 Days

  • Weight :

    1.02 kg
Inquire Now
Main
Product or component type
Touch panel screen
Range of product
Pro-face STM6000
Processor name
ARM Cortex-A8
Software package
GP-Pro EX
Complementary
Display size
7 inch
Aspect ratio
16:9
Display type
Colour TFT LCD
Display colour
16 million colours
Display resolution
800 x 480 pixels WVGA
Touch panel
Single touch analogue resistive
Backlight lifespan
50000 hours white at 25.0 °C at 25 % brightness
Brightness
16 levels
Memory description
64 MB application memory
320 kB backup memory
Type of cooling
Natural convection
Integrated connection type
1.0 COM1 serial link - SUB-D 9 - RS232C/RS422/RS485 (rate: 2400...115200 bps)bottom
1.0 USB 2.0 type Aback
1.0 USB 2.0 type micro Bback
2.0 Ethernet - RJ45 - 10/100BASE-Tbottom
Inrush current
30 A
Realtime clock
Built-in 0...50 °C
Built-in 10...90 % RH
Fixing mode
Ø 22 mm hole, mounting on 1.5 to 6 mm thick panel conforming to UL 61010-2-201
Ø 22 mm hole conforming to IEC 61131-2
Ø 22 mm hole, mounting on 1.5 to 6 mm thick panel conforming to IEC 61131-2
Ø 22 mm hole conforming to IEC 61000-6-2
Ø 22 mm hole, mounting on 1.5 to 6 mm thick panel conforming to IEC 61000-6-2
Enclosure material
PC
Front material
Plastic
Marking
CE
Width
201.2 mm
Height
137.2 mm
Depth
57.7 mm
Product weight
0.76 kg
Environment
Immunity to microbreaks
5 ms
Product certifications
CE
UKCA
cULus
RCM
KC
EAC
cULus Class 1 Division 2
ABS
RINA
BV
DNV
NEMA degree of protection
NEMA 4 front panel (indoor use)
NEMA 13 front panel (in enclosure)
Standards
IEC 61000-6-4
IEC 61000-6-2
IEC 61131-2
UL 61010-2-201
CSA C22.2 No 61010-2-201
CSA C22.2 No 213
Directives
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
IP degree of protection
IP20 (rear panel) conforming to IEC 61131-2
IP65 (front panel) conforming to IEC 61131-2
Ambient air temperature for operation
0…50 °C
Ambient air temperature for storage
-20…60 °C
Relative humidity
10…90 % non-condensing
Operating altitude
2000 m
Pollution degree
2 conforming to IEC 61131-2 ed.3
Vibration resistance
+/- 3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2
9.8 m/s² (f = 9…150 Hz)
Shock resistance
147 m/s² for 11 ms (X, Y, Z directions for 10 cycles (approx. 100 min)) conforming to IEC 61131-2
Electromagnetic compatibility
Electrical fast transient/burst immunity test (power ports) conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test (signal ports)
Electrostatic discharge immunity test (contact discharge) conforming to IEC 61000-4-2 level 3
Electrostatic discharge immunity test (air discharge)



Contact us

Whatsapp/Mobile：+86 18659279237

Sales manager: Mandy Ke

E-mail：conradautomaiton@gmail.com

Address: Unit314-1,No.16 East Haijing Road, Xiamen Area of Pilot Free Trade Zone (Fujian) of China

Website: https://www.conradautomation.com



Our Service

1.New and Original

2.In Stock

3.Best Price

4.Fast Delivery

5.One Year Warranty

New + original + in stock + one year warranty

Hot Tags : Pro-Face HMI Human Machine Interface STM6000 Series 7'' touch panel display PFXSTM6400WADE01 Touch panel screen
Leave us Messages
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
Related Products

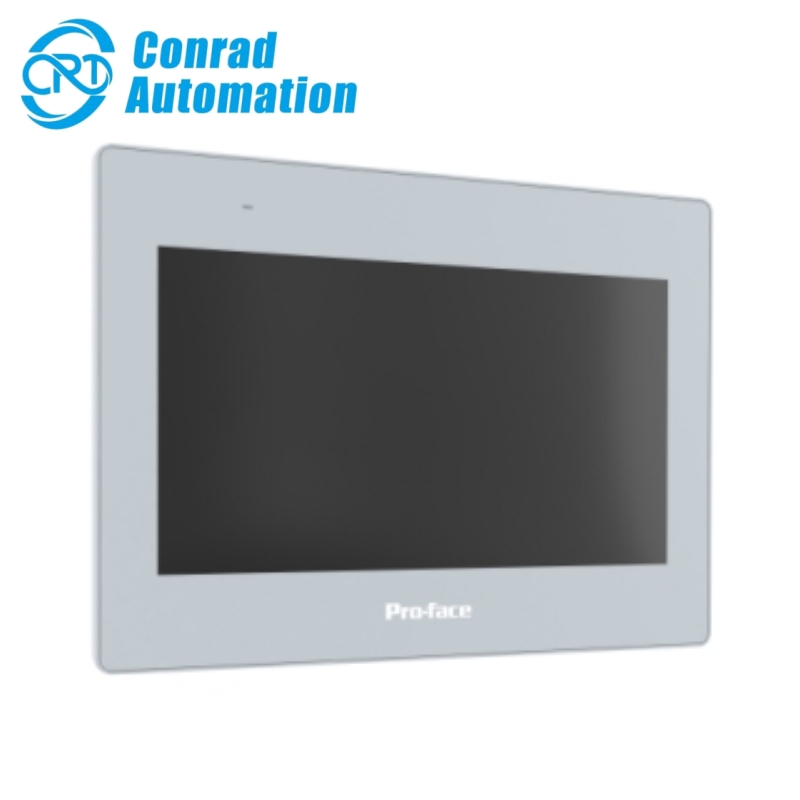

Pro-Face PFXET6500WAD 10 inch Wide HMI ET6000 Series Human Machine Interface
Pro-Face PFXET6500WAD 10 inch Wide HMI ET6000 Series Human Machine Interface

Pro-Face PFXET6500WAD 10 inch Wide HMI, WSVGA, 16M colors, Analog, Ethernet I/F x1, COM I/F x2, USB A I/F x1, USB micro-B I/F x1, 24VDC

More
Pro-Face PFXET6400WAD 10 inch Wide HMI ET6000 Series Human Machine Interface
Pro-Face PFXET6400WAD 10 inch Wide HMI ET6000 Series Human Machine Interface

Pro-Face PFXET6400WAD 7 inch Wide HMI, WVGA, 16M colors, Analog, Ethernet I/F x1, COM I/F x2, USB A I/F x1, USB micro-B I/F x1, 24VDC

More

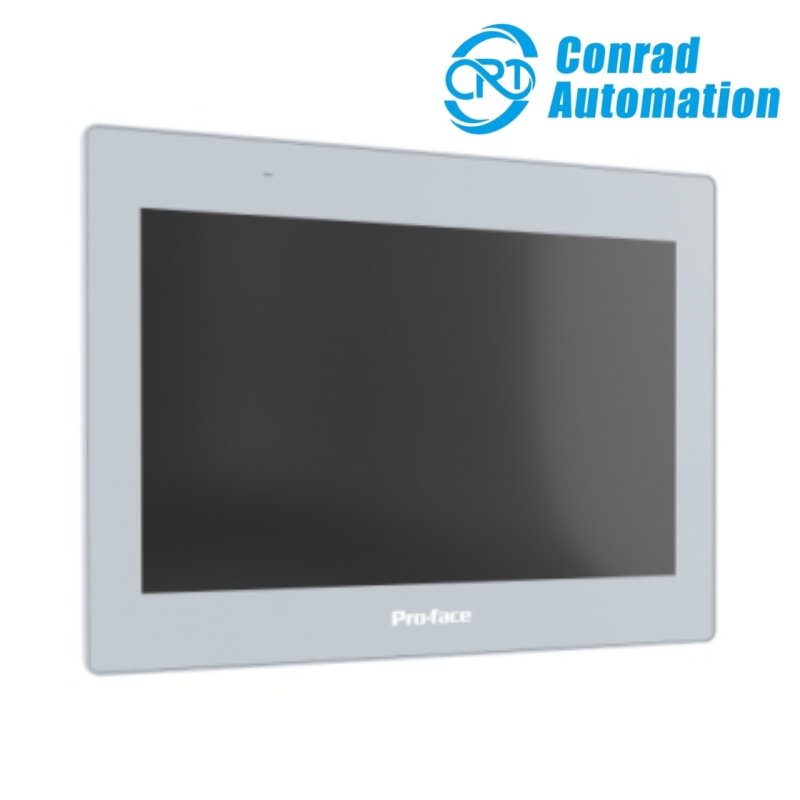

Pro-Face PFXET6600WAD 12 inch Wide HMI ET6000 Series Human Machine Interface
Pro-Face PFXET6600WAD 12 inch Wide HMI ET6000 Series Human Machine Interface

Pro-Face PFXET6600WAD 12 inch Wide HMI, WXGA, 16M colors, Analog, Ethernet I/F x1, COM I/F x2, USB A I/F x1, USB micro-B I/F x1, 24VDC

More

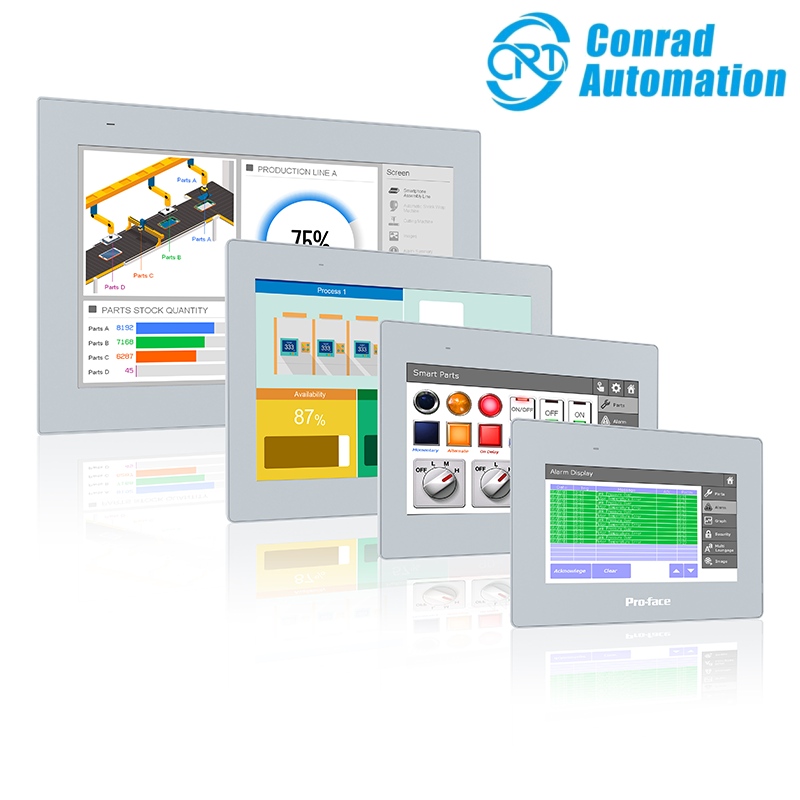

Pro-Face PFXET6700WAD 15 inch Wide HMI ET6000 Series Human Machine Interface
Pro-Face PFXET6700WAD 15 inch Wide HMI ET6000 Series Human Machine Interface

Pro-Face PFXET6700WAD 15 inch Wide HMI, FWXGA, 16M colors, Analog, Ethernet I/F x1, COM I/F x2, USB A I/F x1, USB micro-B I/F x1, 24VDC

More

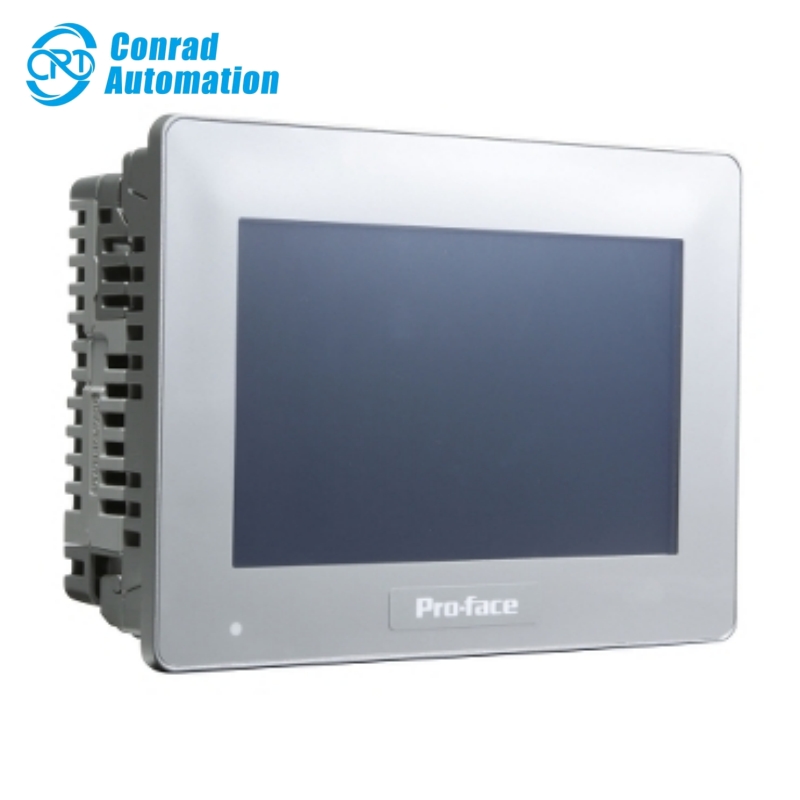

Pro-Face PFXSP5400WAD 7W touch panel display HMI SP5000 Series Human Machine Interface
Pro-Face PFXSP5400WAD 7W touch panel display HMI SP5000 Series Human Machine Interface

Pro-Face PFXSP5400WAD 7W touch panel display, WVGA, Analog-Single, Modular, 12-24VDC

More

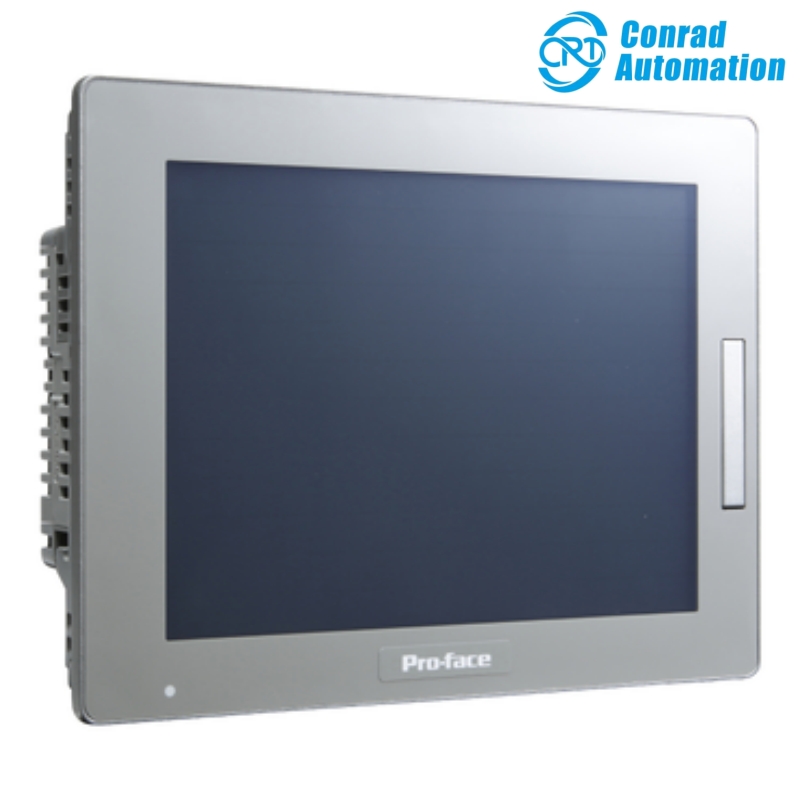

Pro-Face PFXSP5500TPD 10 inch wide touch panel display HMI SP5000 Series Human Machine Interface
