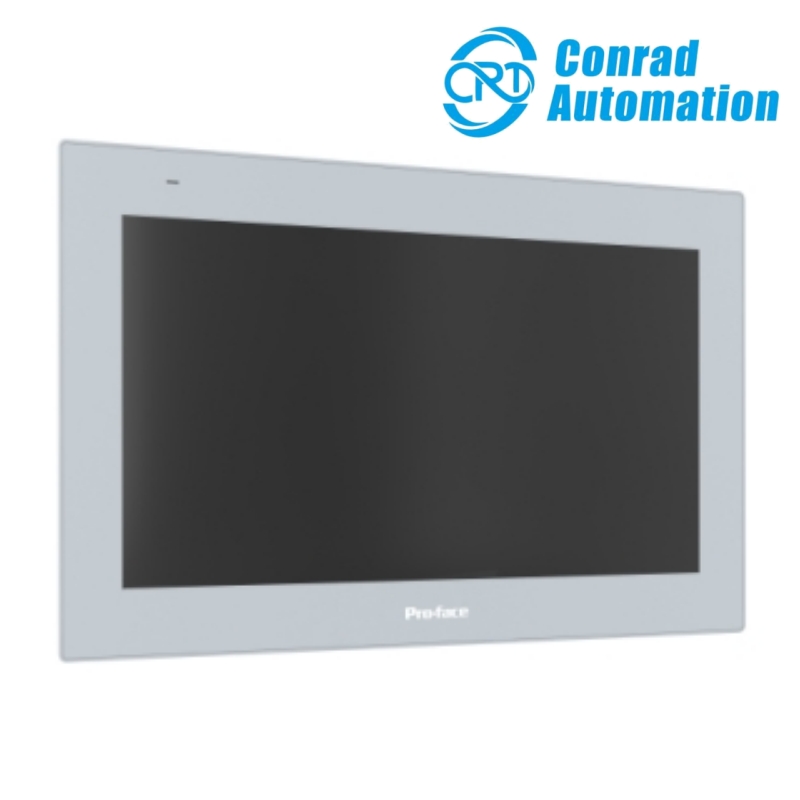

Pro-Face PFXET6700WAD 15 inch Wide HMI ET6000 Series Human Machine Interface

ET6000 Series Human Machine Interface
PFXET6700WAD

Pro-Face PFXET6700WAD 15 inch Wide HMI ET6000 Series Human Machine Interface

Pro-Face PFXET6700WAD

15 inch Wide HMI, FWXGA, 16M colors, Analog, Ethernet I/F x1, COM I/F x2, USB A I/F x1, USB micro-B I/F x1, 24VDC

  • Item No :

    PFXET6700WAD

  • Order(MOQ) :

    1

  • Payment :

    T/T

  • Product Origin :

    China

  • Color :

    Black

  • Shipping Port :

    XIAMEN

  • Lead Time :

    30 Days

  • Weight :

    3.40 kg
Inquire Now
Main
Product or component type
Touch panel screen
Range of product
Pro-face ET6000
Software package
GP-Pro EX
Processor name
ARM Cortex-A8
Complementary
Display size
15 inch
Display type
Colour TFT LCD
Display colour
16 million colours
Display resolution
1366 x 768 pixels FWXGA
Touch panel
Single touch analogue resistive
Brightness
16 levels
Character font
Greek
Latin
[Us] rated supply voltage
24 V DC +/- 20 %
Inrush current
30 A
Local signalling
Status LED green, steady for offline
Status LED green, steady for operating
Status LED green, flashing for logic stop
Status LED orange, flashing for software starting up
Status LED red, steady for power supply (ON)
Status LED, off for power supply (OFF)
Power consumption in W
18.5 W
Port Ethernet
10/100BASE
Memory description
Device memory 256 MB
User data memory 64 MB
Backup memory 128 kB
Integrated connection type
1 COM1 serial link - 1 SUB-D 9-pin male - RS232C (rate: 2400...115200 bps)bottom
1 COM2 serial link - 1 SUB-D 9-pin male - RS422/RS485 (rate: 2400...115200 bps)bottom
COM2 serial link (rate: 2400...187500 bps)bottom
1 Ethernetbottom
1 USB 2.0 type Aback
1 USB 2.0 type micro Bback
Supply
External supply
Realtime clock
Built-in 0...50 °C
Built-in 10...90 % RH
Fixing mode
By 6 screws, mounting on 1.6...5 mm thick panel
Cut-out dimensions
394 x 250 mm panel cut dimension
Width
412 mm
Height
268 mm
Depth
50 mm
Product weight
2.52 kg
Environment
Immunity to microbreaks
5 ms
Enclosure material
PC
Front material
Plastic
Product certifications
CE
UL
KC
UKCA
NEMA degree of protection
NEMA 4 front panel (indoor use)
NEMA 13 front panel (in enclosure)
Standards
IEC 61000-6-4
IEC 61000-6-2
IEC 61131-2
UL 61010-2-201
CSA C22.2 No 61010-1-201
Directives
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
IP degree of protection
IP20 (rear panel) conforming to IEC 61131-2
IP65 (front panel) conforming to IEC 61131-2
Ambient air temperature for operation
0…50 °C
Ambient air temperature for storage
-20…60 °C
Relative humidity
10…90 % non-condensing
Operating altitude
2000 m
Vibration resistance
+/- 3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2
9.8 m/s² (f = 9…150 Hz)
Shock resistance
147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to IEC 61131-2
Electromagnetic compatibility
Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV (signal ports)
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3
Electrostatic discharge immunity test - test level: 8 kV (air discharge)
